High Quality 1-200TPD Palm Oil Refinery Equipment
- Usage: Palm Oil
- Type: Cold & Hot Pressing Machine
- Automatic Grade: Automatic, Automatic
- Production Capacity: 100~1000T/D, 100%
- Model Number: HT-POM
High Quality 1-200TPD Palm Oil Refinery Equipment Description
Specifications
1.easy operation refined machine
2.low oil consumption
3.40years’ experience
The Introduction of the palm oil refining plant :
1.Introduction:
(1) Purpose :Oil refining is according to the different usage and requirements , utilizing the physical methods and chemical processes to get rid of the harmful impurities and needless substance in the crude oil , getting some standard oil .
Our oil refining machine is suitable for refining various crude vegetable oil, such as sunflower seed oil, tea seed oil, groundnut oil, cottonseed oil, palm oil, rice bran oil, soybean oil, corn oil and palm oil, etc.

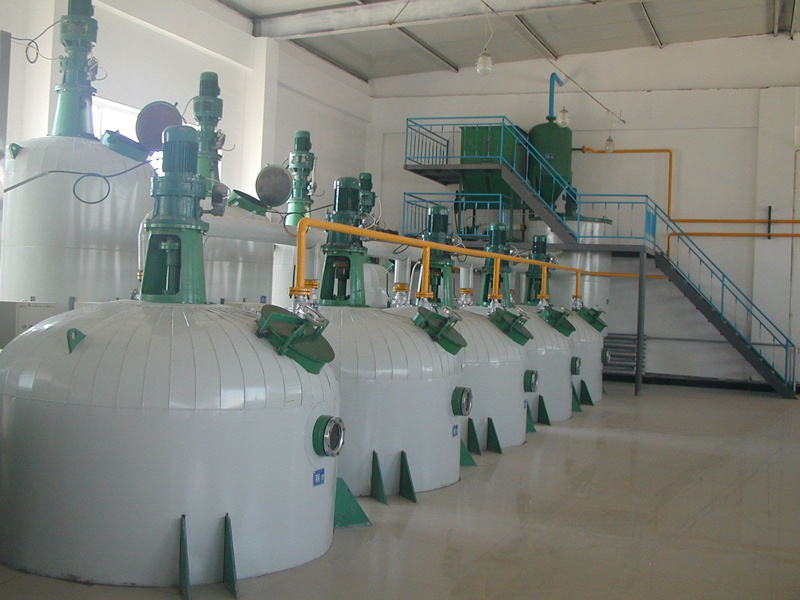

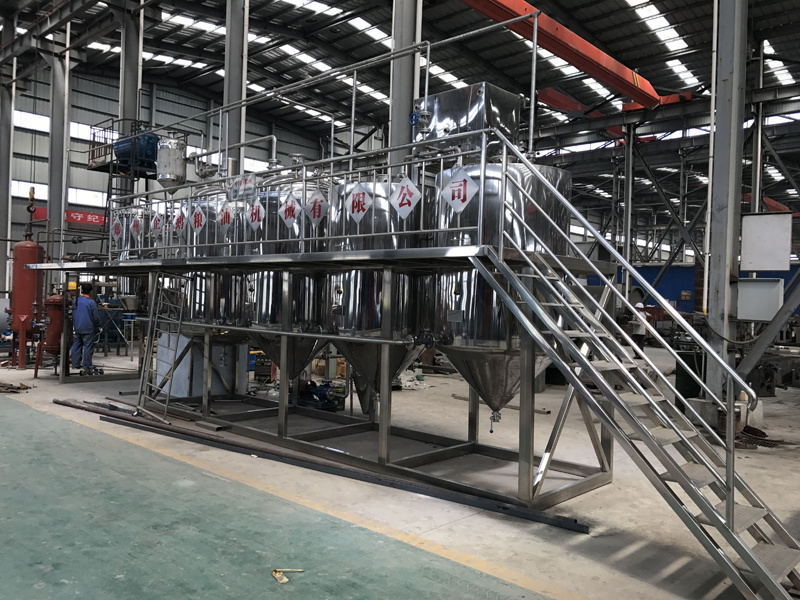

(2) main parts:refining pot , decoloration pot ,deodorization pot , oil pumps and other parts
(3) Advantage: a .After refining the impurity of oil must be less than 0.2% ;
b.Recycling system save power and money ;
c.Lower oil waste.
2.Working process:
(1)pump crude oil into refining tank and heat with conduction oil, and the temperature will reach about 70°C-80°C after one hour.
Add acid or alkali to separate according to the acid value. After one hour’s processing and 4-6hours deposit, then convey soap stock to storage tank.
(2)Pump refined oil into decoloring tank. When it is up to 90-110°C after one hour’s heating, add clay into tank for 20min’s processing. Then separate clay and oil with filter.
(3)Put discolored oil into deodorization tank with vacuum pump. Heat and process with steam for odor removal. After filtering, you will get final oil product.
3.Functions of main parts
(1) Refining section: used to P-acid de-gumming, alkali refining de-acid and water rinsing.
(2) Decoloring section: used to remove off pigments, bleaching oils and grease dehydrate.
(3) Deodorizing section: to remove off the odor components in oil.
(4) Dewax: used to remove off the wax in the oil, in order to get the high quality oil.
(5) Heat-transfer oil stove: supply each device production needing heat energy, temperature reach above 280°C.
(6) Steam generator: produce the needing steam for de-odoring and distillation.
(7) Vacuum pump: supply needing vacuum for dehydrate, de-color, de-odor. Vacuum degree can reach above 755mm Hg.
(8) Press filter: filter clay, filter out clear oil.
(9) Air compressor: blow dry bleached clay, blow empty the leftover oil in the press filter.
Technical parameters of High Quality 1-200TPD Palm Oil Refinery Equipment
| Voltage | 380v |
| Power(W) | less than 85kw |
| Dimension(L*W*H) | according to the specification |
| Weight | about 40ton, about 40ton |
| Certification | ISO9001,CE,BV |
| After-sales Service Provided | Engineers available to service Machine overseas |
| Capacity | 1T to 1000T |
| Material of equipment | stainless steel and carbon steel |
| Raw material | all kins of oil seeds |
| including | machines,installation,tech consulting after sales |
| operattion | automatic and safe |
| type | palm oil extraction machine |
| Warranty | 12month |
