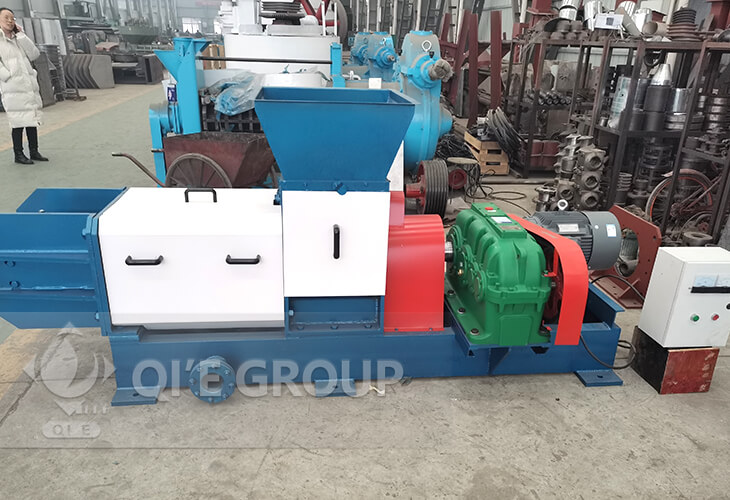

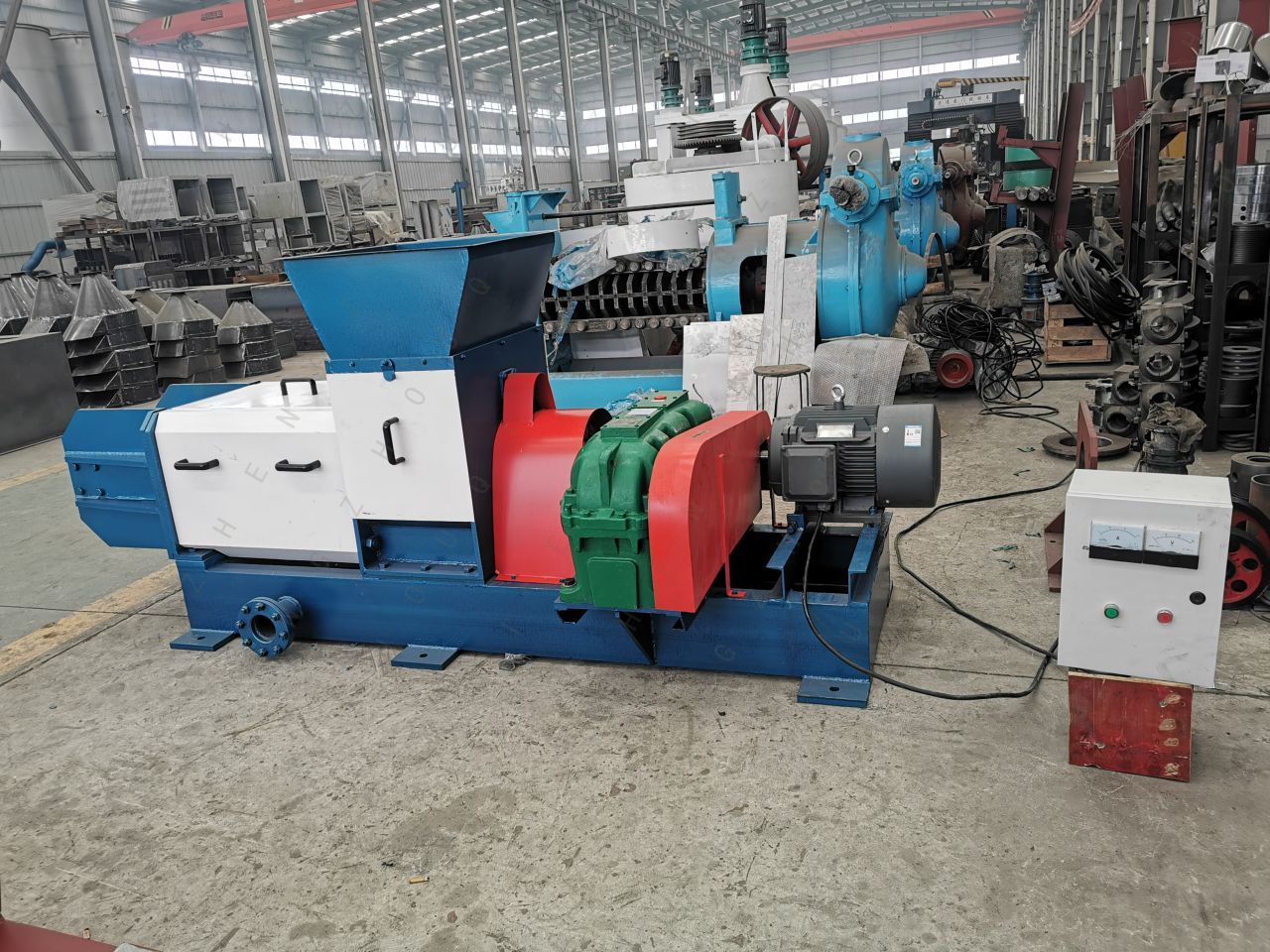

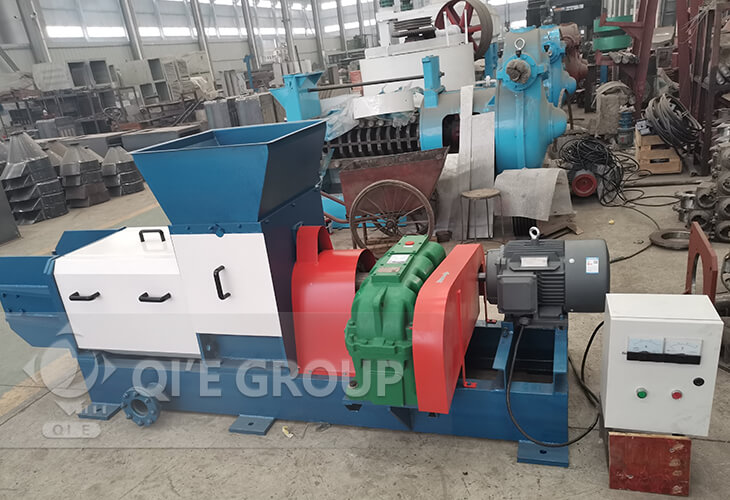

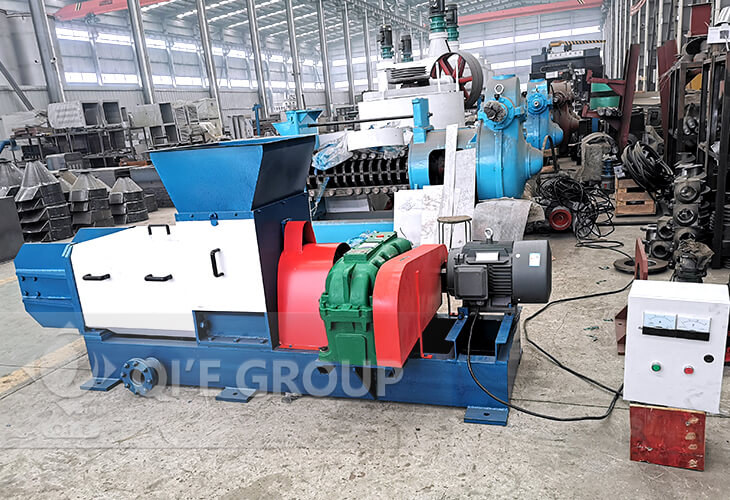

Palm Oil Press Machine
- Usage: Palm Oil
- Type: palm oil screw press
- Automatic Grade: Automatic
- Production Capacity: 0.5-15TPH
- Model Number: YZX series
Palm Oil Press Machine Description
Technology parameters：
Model：YZX16
Capacity：0.5tph
Main electromotor power：5.5kw
Measurement(L×W×H)：1562×720×1298mm
Weight：650kg
Model：YZX20
Capacity：1tph
Main electromotor power：7.5kw
Measurement(L×W×H)：2410×850×930mm
Weight：970kg
Model：YZX25
Capacity：2tph
Main electromotor power：11kw
Measurement(L×W×H)：2900×1050×1245mm
Weight：1150kg
Technical parameters of Palm Oil Press Machine
| Capacity(TPH) | Spindle speed(r/min） | Feed temperature（℃） | Residual oil rate of cake（%） | Palm kernel breakage rate（%） | Power(kw) | Size(mm)(L*W*H) | Weight(kg) |
| 0.5 | 25~35 | 90-95 | <8 | <15 | 5.5 | 1562×720×1298 | 450 |
| 1 | 15~20 | 90-95 | <8 | <15 | 7.5 | 2410×850×930 | 620 |
| 2 | 15～20 | 90-95 | <8% | <15% | 11 | 2900×1050×1245 | 1137 |
| 3 | 11 | 90-95 | <7 | <10 | 11 | 3100×1300×790 | 1800 |
| 5 | 11 | 90-95 | <7 | <10 | 15 | 3900×1500×850 | 2500 |
| 10 | 10.5 | 90-95 | <7 | <10 | 22 | 4250×1550×900 | 3600 |
| 15 | 10.5 | 90-95 | <7 | <10 | 30 | 4450×1650×960 | 4500 |
