Small Scale Edible Oil Refinery Plant Small Scale Oil Refinery
- Usage: screw palm oil press machine
- Type: Cold & Hot Pressing Machine
- Automatic Grade: Automatic
- Production Capacity: according to the capacity
- Model Number: QIE coconut oil machine
Small Scale Edible Oil Refinery Plant Small Scale Oil Refinery Description
Henan QIE Mechanical Equipment Co.,ltd is one of the leading manufacturer of oil processing equipment in China.
Our company service includes: technology design, installation and commissioning,technical training, relocation of oil plant, technology reform and turnkey project.
Our products have gained man achievements and awards. And we have install cooking oil projects in more than 20 countries all over the world, such as Malaysia, Indonesia, Nigeria, Liberia, Thailand, Congo, Zambia, Uzbekistan etc.

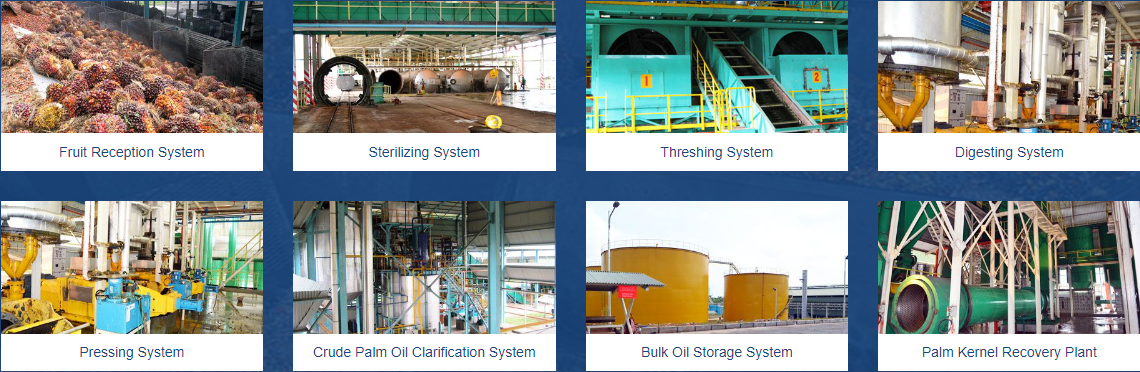

1, From Fresh Palm Fruit Bunch to Crude Palm Oil is the pressing production line.
It includes five steps:
Raw materials storage→Sterilizing→Threshing→Crashing&Pressing→Clarifying
2, From Palm Crude Oil to Edible/Cooking Oil is the Refinery.
It includes four steps:
De-gumming&De-acidification → De-colorization → De-odorization →Fractionation
We can design the machine according to your raw materials and final products.
| SPECIFICATIONS FOR DY-130 SMALL PALM FRUIT OIL PRESS | ||||
| Capacity | 300-500 | kg/h | ||
| Main Power | Diesel | 8HP | ||
| Main Power | Motor | 4kw | ||
| Main Shaft Speed | 25-35 | r/min | ||
| Boil Time | 2 | h | ||
| Weight | 350 | kg | ||
| Packed Size | 1500*800*1200 | mm | ||
| Capacity we can manufacture | 0.5-120 | t/h | ||
Raw materials storage:
The discharge door has discharging channels,the upper and lower switches of the iron gate are controlled by pneumatic, Pneumatic control system consists of air compressor and pneumatic control devides. Start the control valve to open the gate of the discharge door, then the palm fruits will fall into the fruit basket car or conveyor.
Sterilizing:
The purpose is to prevent enzymes broken down, avoiding FFA content in oil further increase. At the anwhile, tmehe temperature will make the fruits soften, it is easy for threshing, pretreatment peel, prepared for the follow-up processing, like pressing, husking, it is also reducing the damage kernel.
Threshing:
The purpose of threshing is to separate the palm fruit from the FFB. The drum type thresher is the usual machine to separate the fruit. There is a horizontal turning machine in the inner of the threshing. The separated oil palm fruit is sent into the pressing section. Empty fruit bunch be ejected to the yard from the other side of the revolving drum, or shipped out from the plant as palm orchards slipcover to recycling use, or burning in the locale as fertilizer for agricultural land.
Crushing&Pressing:
The steam is used to cook the palm fruit and broke the cell of pulp. The best condition of cooking is 90～100℃ for 20 min. The tubes of the crasher use the indirect steam to heat the crasher and palm fruit. The direct steam is added to the inner of crasher. The direct steam is used to adjust the water content and temperature in the crasher. The central shaft includes lots of blade to crush the palm fruit. The palm fruit is entered the crasher from the top and discharged from the bottom.
Our Service
Pre-Sales Service
1)Providing you with the preliminary plan, process plans, and manufacturer equipment according to your demands.
2)sending technical in order to guide the installation and adjustment, shipper operators and finish the checks.
After-Sales Service
3)Offering one year warranty for the whole machine except easy broken parts, Providing the spare parts with favorable price all the time 24 hours online service.
To establish long-term and stable business relationship, we will pay regular visits to customers.Packing & DeliveryRelated ProductsContact Details
Technical parameters of Small Scale Edible Oil Refinery Plant Small Scale Oil Refinery
| Voltage | 220v,380v,440v |
| Power(W) | according to the capacity |
| Dimension(L*W*H) | according to the capacity |
| Weight | according to the capacity |
| Certification | CE,BV,ISO |
| After-sales Service Provided | Engineers available to service Machine overseas |
| name | screw palm oil press machine |
| raw materials | fresh coconut |
| texture | stainless steel,carbon steel |
| package | wooden case special for coconut oil machine |
| other materials | walnut,almond,shea nut, palm kernel, sesame |
| using condition | no extra requirement |
| popular area | Srillanka, Malaysia,Phillipine,Nigeria,America tropical area |
| main business | South East Asia,Middle America,West Africa |
| using life | more than 15 years |
| Material | Stainless Steel 304 |
